A Design and Build Journal of How I Built my Tiny Teardrop Trailer

©  2004, 2005, 2006, 2007 by Man of the Cloth Productions

Tools & Materials

I started building my Zephyr in December and finished construction in July. I worked on this enjoyable project several evenings most weeks and often on my day off.  I even took a few vacation days and spent several days-in-a-row working on  the project.  I didn't  keep track of my hours because the joy of the project was in thinking about it, designing and building it.

I was able to build the Zephyr inside a shed which I used just for this purpose.  I was grateful for this even though it was cold in the winter and hot in the summer.   I was able to leave the project and my tools in a secure place without having to put it all away each time I stopped working on it.  This was the real benefit of building my Teardrop indoors.

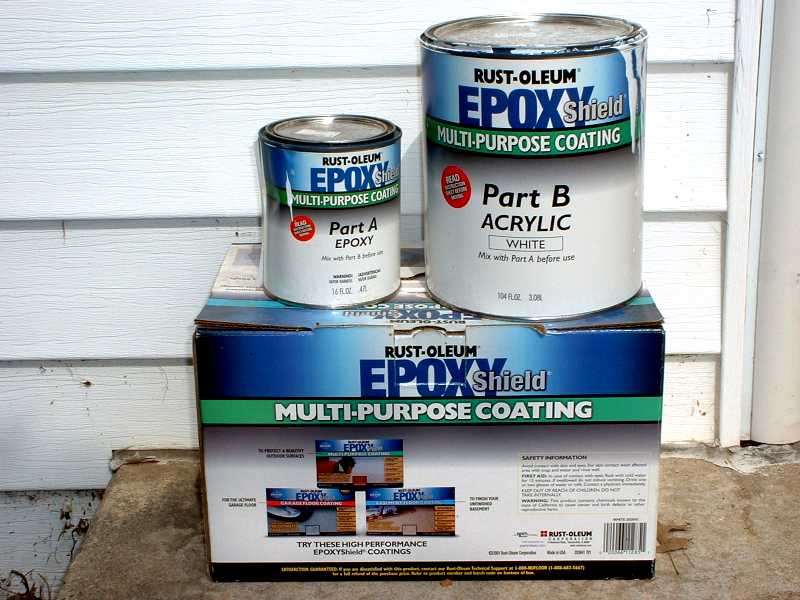

This is the epoxy product that I used as the final coat on the exterior.  It was Epoxy Shield, made by Rustoleum.  I  was able to purchase this at my local True Value store.

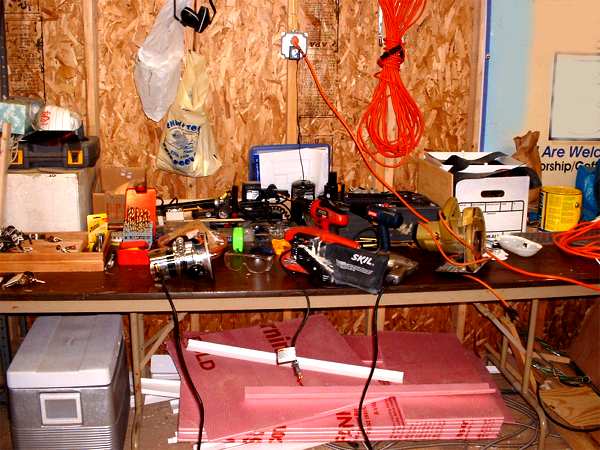

Shop Tools      (* Loaned to me.)
Angle “Square”*
Adjustable “T” Square
Bubble Level
“C” clamps*
Carpenter’s Quick Square
Deep Socket Set*
Ear Protectors
Framing Square*
Hammer
Hand Saw
Pocket Knife
Pocket Jig
Pliers
Safety Glasses
Screw Drivers
Scribe*
Socket Set
Soldering Iron
Spring Clamps
Tape Measure
Terminal Crimp Tool
Titanium Drill Bits *
Vise
Wire Cutter
Wire Stripper
Wood Clamps*
Work bench or saw horse* (2)

Power Tools
Air Compressor*
Air-powered Nail Gun*
Cordless Drills*
Hand Held Grinder*
Belt Sander *
Miter Saw*
Router*
Saber Saw*
Skill Saw
Table Saw*

Initial Stock Materials
Hardboard  4 x 8’ x ¼”
Oak Veneer 4 x 8’ x ¼”
Luan 4 x 8’ x ¼”
Plywood 4 x 8’ x 3/8”
Plywood 4 x 8’x ¼”
Plywood 4 x 8’ x ½”
Plywood 4 x 8’ x ¾”
Spruce 2 x 4” x 12’
Pine 1 x 4” x 6’
Pine 1 x 3” x 6’
Oak  4 x 6" x 6'

Hardware
Carriage Bolts 6” x 3/8”
Carriage Bolts  2 ½” x ¼”
Stainless Steel Lag Screws 4 x 3/8”
1½” Coarse Decking Screws
2½” Coarse Decking Screws
Brads for Nail Gun
Stainless steel flat hinge
Cab latches and handles w/ locks

Finish Materials
MinWax Red Oak Stain
Zinsser Bull’s Eye Amber Shellac
Household Paint (sitting around)
Spray Undercoating
Subfloor Construction Adhesive
Titebond III Waterproof Glue
Epoxy Shield
1 gal  Snow Roof Premium Coating
1 gal  Snow Roof Elasto-seal

Electrical
12 v DC Fuse Box
AC Circuit Breaker
“Square D” Breaker Box
Romex
GFI  Outlet
12 Gauge Automotive Wire
10 Gauge Automotive Wire
12 v DC Cabin Lights
AC –DC Power Converter
